Main Technical Parameters
NO. | Ltem | Unit | Value |
1 | Rated voltage | kv | 40.5 |
2 | Rated frequency | Hz | 50 |
3 | Rated current of busbar | A | 800a,1250a,2000-3150a |
4 | Rated short -circuit breaking current | KA | 16, 20, 25, 31.5 |
5 | Rated short -circuit making current | KA | 16, 20, 25, 31.6 |
6 | Rated dynamic stability current | KA | 40, 50, 63, 80 |
7 | Rated thermal sability current | KA | 40, 50, 63, 81 |
8 | Internation protection |
| IP2X |
9 | Outline size(W× D× H) | MM | 1800× 2000× 2300 |
10 | Weight | KG | ≈ 1500 |
Product Information

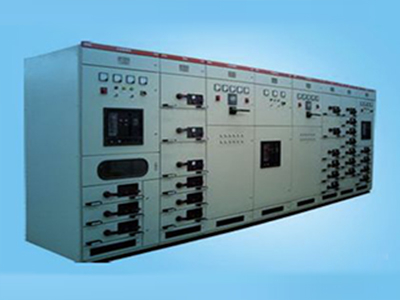

1.The cubicle of metal electrical distribution box is of assembled structure, free from welding, high mechanical strength and artistic appearance.
2.The rear upper part is for GN30-12 rotary isolating switch and lower part for GN19-12C isolating switch.
The mechanical interlock device operated as per procedures can provide reliable safety protection for the Operation personnel and equipment.
3.The cubicle of metal electrical distribution box is of air insulated type, compatible with VCB of integrated mechanism as: VS1-12(ZN63A) and VD4-12.
With over 30 years' experience in manufacturing and marketing quality xgn66-12 high voltage metal electrical distribution box dxa47 to all over the world, Jinpei Electronics is recognized as one of the leading manufacturers and suppliers. We now have quantity of quality xgn66-12 high voltage metal electrical distribution box dxa47 for sale, you can rest assured to buy it with our company at a competitive price.
