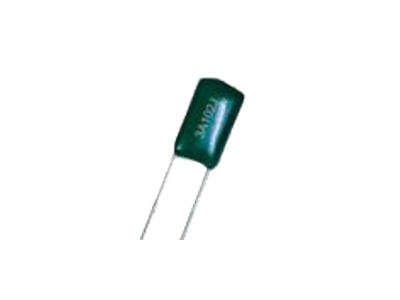

Polyester Film Capacitors-Pei CL11

Good reputation in use with consumer & industrial electronics. Optimum for automatic insertion due to their small size and light weight. Coated with epoxy resin for superior heat resistance, humidity resistance and solvent resistance...
Availability:


Good reputation in use with consumer & industrial electronics.
Optimum for automatic insertion due to their small size and light weight.
Coated with epoxy resin for superior heat resistance, humidity resistance and solvent resistance.

Operating Temperature———  -40℃ To + 85℃

Rated Voltage——— Dc 100v,250v,400v,630v,1000v,1200v

Capacitance Range———0.00027 To 0.47μF

Capacitance Tolerance ———±5%, ±10%, ±20%

Insulation Resistance——— Min, >0.1μF >15000 Mω

Dissipation Factor ———≤0.1 (At 1khz)

Dielectric Strength———200% Of Rated Voltage For 5sec


Polyester Film Capacitors-Pei CL11.pdf


Polyester Film Capacitor supplier


With over 30 years' experience in manufacturing and marketing quality polyester film capacitors-pei cl11 to all over the world, Jinpei Electronics is recognized as one of the leading manufacturers and suppliers. We now have quantity of quality polyester film capacitors-pei cl11 for sale, you can rest assured to buy it with our company at a competitive price.
