Availability: | |
---|---|

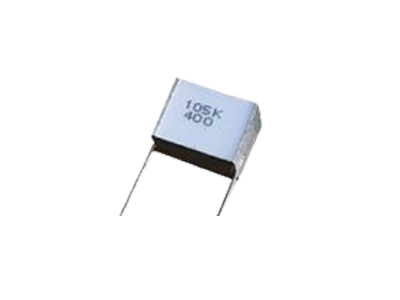

FEATURES ● metallized polyester film, stacked construction, Uncoated ● High impulse and pulse strength |
TYPICAL APPLICATIONS
● DC impulse and pulse circuits
● SMPS, converter, Electronic ballasts, compact fluorescent lamps
SPECIFICATIONS
Reference Standard:GB/T 7332 (IEC 60384-2)
Climatic Category:55/125/56
Rated temperature:85℃ for VR(dc), 75℃ for VR(ac)
Operating temperature range:-55℃~125℃
(+85℃ to +125℃:ecreasing factor 1.25% per ℃ for VR(dc)
(+75℃ to +125℃:decreasing factor 1.35% per ℃ for VR(ac)
Rated Voltage:63V, 100V, 250V, 400V, 630V,1000V
Capacitance Range:0.010μF ~ 10.0μF
Capacitance Tolerance:±5%(J), ±10%(K), ±20%(M)
Voltage Proof:1.4UR (2s)
Dissipation Factor:≤0.01(1kHz), ≤0.0150(10kHz, CR≤1μF), ≤0.0300 (100kHz, CR≤0.1μF)
Uncoated Metallized Polyester Film Capacitors CL25.pdf
With over 30 years' experience in manufacturing and marketing quality uncoated metallized polyester film capacitors cl25 to all over the world, Jinpei Electronics is recognized as one of the leading manufacturers and suppliers. We now have quantity of quality uncoated metallized polyester film capacitors cl25 for sale, you can rest assured to buy it with our company at a competitive price.
