Availability: | |
---|---|

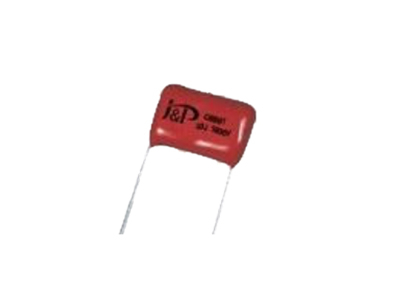

FEATURES ● Film/Foil, non-inductive wound type, dipped ● Excellent frequency and temperature characteristics ● Very small loss even at high frequency ● Flame retardant epoxy resin powder coating (UL94 V-0) |
TYPICAL APPLICATIONS
Widely used in high frequency, DC and pulse circuits
SPECIFICATIONS
Reference Standard:GB/T10188 (IEC 60384-13)
Climatic Category :40/105/21
Rated temperature:85℃
Operating Temperature:-40℃~105℃(+85℃ to +105℃:decreasing factor 1.25% per ℃ for VR(DC))
Rated Voltage:100V,160V,250V,400V,630V,800V
Capacitance Range:0.001μF ~ 0.1μF
Capacitance Tolerance:±2%(G),±5%(J), ±10%(K),
Voltage Proof:2.0UR (5s)
Dissipation Factor:≤10×10-4(1kHz, 20℃)
Polyropylene Film Foil Capacitors Non-Inductive CBB13.pdf
With over 30 years' experience in manufacturing and marketing quality polyropylene filmfoil capacitors non-inductive cbb13 to all over the world, Jinpei Electronics is recognized as one of the leading manufacturers and suppliers. We now have quantity of quality polyropylene filmfoil capacitors non-inductive cbb13 for sale, you can rest assured to buy it with our company at a competitive price.
