FEATURES ● Metallized polypropylene film/foil, wound construction ● Low loss and small inherent temperature rise ● Negative temperature coefficient of capacitance ● Flame retardant epoxy resin powder coating(UL94/V-0) |
SPECIFICATIONS
Reference Standard:GB/T14579 (IEC 60384-17)
Climatic Category:40/105/21
Rated temperature:85℃
Operating Temperature:-40℃~105℃(+85℃ to +105℃:decreasing factor 1.25% per ℃ for VR(DC))
Rated Voltage:630V,800V,1000V,1250V,1600V,2000V,2500V
Capacitance Range:0.001μF ~ 0.1μF
Capacitance Tolerance:±3%(H),±5%(J), ±10%(K),
Voltage Proof:1.75UR (5s)
Dissipation Factor:≤10×10-4(1kHz, 20℃),/20×10-4(10kHz, 20℃)
TYPICAL APPLICATIONS
● Horizontal resonance circuits of large screen monitor and colour TV
● Suitable for high pulse and high current loading circuit
● Suitable for electronic ballast

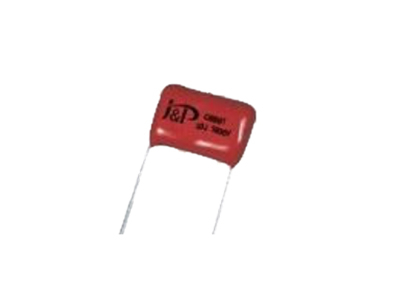

High Voltage Tage Metallized Polypropylene Film Capacitors CBB81.pdf
With over 30 years' experience in manufacturing and marketing quality high voltage tage metallized polypropylene film capacitors cbb81 to all over the world, Jinpei Electronics is recognized as one of the leading manufacturers and suppliers. We now have quantity of quality high voltage tage metallized polypropylene film capacitors cbb81 for sale, you can rest assured to buy it with our company at a competitive price.
