Availability: | |
---|---|
FEATURES ● Metallized polypropylene structure ● Low loss at high frequency ● Small inherent temperature rise ● Flame retardant epoxy resin powder coating (UL94/V-0) |
SPECIFICATIONS
Reference Standard:GB/T14579 (IEC 60384-17)
Climatic Category:40/105/21
Rated temperature: 85℃
Operating Temperature: -40℃~105℃(+85℃ to +105℃:decreasing factor 1.25% per ℃ for VR(DC))
Rated Voltage: 100V,160V,250V,400V,630V,1000V,1250V
Capacitance Range:0.001μF ~ 3.3μF
Capacitance Tolerance:±5%(J), ±10%(K), ±20%(M)
Voltage Proof:1.6UR (5s)
Dissipation Factor:≤10×10-4(1kHz, 20℃)
TYPICAL APPLICATIONS
● Widely used in high frequency, DC,AC and pulse circuits
● Providing optimum performance with small size in S-c orrection circuits for colour TV set
● Specially designed for S-correction circuits of large screen monitor and colour TV
● Suitable for the situation where applies high frequency and high current pulse

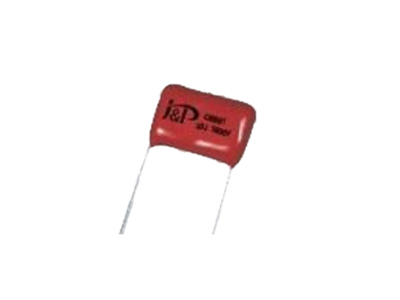

Metallized Polypropylene Film Capacitors CBB21.pdf
With over 30 years' experience in manufacturing and marketing quality metallized polypropylene film capacitors cbb21 to all over the world, Jinpei Electronics is recognized as one of the leading manufacturers and suppliers. We now have quantity of quality metallized polypropylene film capacitors cbb21 for sale, you can rest assured to buy it with our company at a competitive price.
FEATURES ● Metallized polypropylene structure ● Low loss at high frequency ● Small inherent temperature rise ● Flame retardant epoxy resin powder coating (UL94/V-0) |
SPECIFICATIONS
Reference Standard:GB/T14579 (IEC 60384-17)
Climatic Category:40/105/21
Rated temperature: 85℃
Operating Temperature: -40℃~105℃(+85℃ to +105℃:decreasing factor 1.25% per ℃ for VR(DC))
Rated Voltage: 100V,160V,250V,400V,630V,1000V,1250V
Capacitance Range:0.001μF ~ 3.3μF
Capacitance Tolerance:±5%(J), ±10%(K), ±20%(M)
Voltage Proof:1.6UR (5s)
Dissipation Factor:≤10×10-4(1kHz, 20℃)
TYPICAL APPLICATIONS
● Widely used in high frequency, DC,AC and pulse circuits
● Providing optimum performance with small size in S-c orrection circuits for colour TV set
● Specially designed for S-correction circuits of large screen monitor and colour TV
● Suitable for the situation where applies high frequency and high current pulse
Metallized Polypropylene Film Capacitors CBB21.pdf
With over 30 years' experience in manufacturing and marketing quality metallized polypropylene film capacitors cbb21 to all over the world, Jinpei Electronics is recognized as one of the leading manufacturers and suppliers. We now have quantity of quality metallized polypropylene film capacitors cbb21 for sale, you can rest assured to buy it with our company at a competitive price.
