Availability: | |
---|---|
SPECIFICATIONS Operating temperature:-55℃ ~ +70℃ Capacitance tolerance:J(±5%), K(±10%) Dissipation Factor:≤0.015 (≤0.004) Standing Voltage : |
Between the two leads-to withstand 1.5 times the rated voltage a minute,no flashover or breakdown;
Leads to end with the shell can withstand between between 50Hz AC voltage:
a,Rated voltage≤630V is 750V;
b,Rated voltage >630V is 12.times of rated voltage 1 minute,no arcing or breakdown;
Insulation Resistance:
(When Temperature at 20℃)The insulation resistance between the two leads no less than the below provision:Leads to haed with shell of insulation resistance no less than 5KM Ω.
Insulation Resistance | |||
Capacitance Range(μF) | 160V | 250v | ≥400V |
≤0.1 | 5000MΩ | ||
≥0.22 | 200S | 500S | 1000S |
≥10 | 200S | 500S | 1000S |

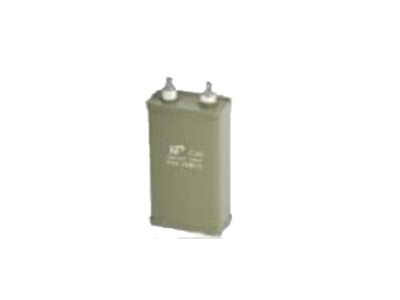

Metallized Plastic Film Capacitors CJ40 CJ41 CJ48.pdf
With over 30 years' experience in manufacturing and marketing quality metallized plastic film capacitors cj40 cj41 cj48 to all over the world, Jinpei Electronics is recognized as one of the leading manufacturers and suppliers. We now have quantity of quality metallized plastic film capacitors cj40 cj41 cj48 for sale, you can rest assured to buy it with our company at a competitive price.
