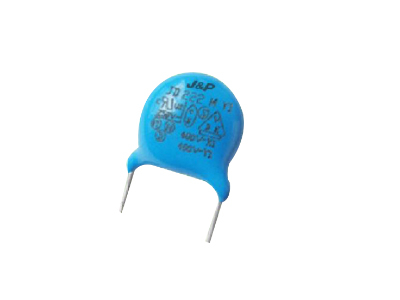

Safety Standard Recognized Capacitor Y1 Y2

Operating Temperature:-25℃ TO +85℃ Capacitance Range:100pF TO 10000pF Capacitance Tolerance:±10%, ±20%, +80-20% Rated Vlotage:AC Y1 450V,Y2 250V Temperature Cofficient:±10% for B (Y5P), +30to-80% for FY (Y5V) Dissipation Factor (tan...
Availability:

Safety Standard Recognized Capacitor - Y1/Y2

FEATURE

●Ideal for across the line applications

●Compact size

●Cost effective product

●Safety standards recognized

Safety Standard Recognized Capacitor Y1 Y2


SPECIFICATIONS

Operating Temperature:-25℃ TO +85℃

Capacitance Range:100pF TO 10000pF

Capacitance Tolerance:±10%, ±20%, +80-20%

Rated Vlotage:AC Y1 450V,Y2 250V

Temperature Cofficient:±10% for B (Y5P), +30to-80% for FY (Y5V)

Dissipation Factor (tan δ):B: 2.5% max. at 20℃ and 1 KHz, 1±0.2Vrms.

Insulation Resistance at AT 20℃:FY: 50max. at 20℃ and 1 KHz, 1±0.2 Varms.

                                                          10000MΩat 500VDC for 1 minute.

Dielectric Strength:1500 VAC for 60 seconds. (250VAC)

                                     4000 VAC for 60 seconds. (450VAC)


Safety Standard Recognized Capacitor supplier


With over 30 years' experience in manufacturing and marketing quality safety standard recognized capacitor y1 y2 to all over the world, Jinpei Electronics is recognized as one of the leading manufacturers and suppliers. We now have quantity of quality safety standard recognized capacitor y1 y2 for sale, you can rest assured to buy it with our company at a competitive price.
