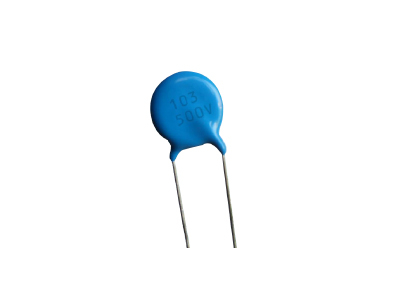

Ceramic Disc Capacitors 50V-500V RC1

Operating Temperature Range:-25℃ to +85℃ Rated Working Voltage:DC 50V, 100V, 500V Test Voltage:3 Times of the Rated Voltage Capacitance:Within the Tolerance at 1 MHz, 1±0.2 Vrms. 25℃ Q FACTOR At 1 MHz. 1±0.2 Vrms. 25℃ C≥30pF ……Q≥1,000 C<30pF...
Availability:

Ceramic Disc Capacitors 50V-500V RC1

FEATURES

● Linear temperature coefficient of capacitance.

● High stability of capacitance.

● Low loss at wide ranfe of frequency.

Ceramic Disc Capacitors 50V-500V RC1


SPECIFICATIONS

Operating Temperature Range:-25℃ to +85℃

Rated Working Voltage:DC 50V, 100V, 500V

Test Voltage:3 Times of the Rated Voltage

Capacitance:Within the Tolerance at 1 MHz, 1±0.2 Vrms. 25℃

                           Q FACTOR At 1 MHz. 1±0.2 Vrms. 25℃

                           C≥30pF ……Q≥1,000

                           C<30pF ……Q≥400+20℃ (C: Rated capacitance)

Insulation Resistance:10,000 MΩmin.


Ceramic Disc Capacitors 50V-500V RC1.pdf


Ceramic Disc Capacitor supplier


With over 30 years' experience in manufacturing and marketing quality ceramic disc capacitors 50v-500v rc1 to all over the world, Jinpei Electronics is recognized as one of the leading manufacturers and suppliers. We now have quantity of quality ceramic disc capacitors 50v-500v rc1 for sale, you can rest assured to buy it with our company at a competitive price.
