Radial Leads Electrolytic Capacitors CD268

Aluminum electrolytic capacitor (also called electrolytic capacitor) is how to achieve high electric capacity? First of all, to increase the plate area effectively, increase the plate in the electrolytic capacitor effective area method is that its anode aluminum foil corrosion is very rough, corrosion foil or tantalum metal powder caking structure to increase the surface area as possible, but only by increasing the positive surface area of the rough and metal anode in fact does not increase the plate effective area, only the cathode substrate as rough as the anode and the surface of the two electrodes is closely to realize effective increase of plate area, which in fact is not possible.

Jinpei as a professional electrolytic capacitor manufacturers and over 30years of screw electrolytic capacitor experience, has always been committed to the capacitor field of high and new technology R&D, Jinpei actively contact clients in different areas, involved in instrument, LED, audio, power supply, electronic toys, security, digital camera, microelectronics, oil drilling, solar energy, new energy vehicles, communications, military spaceflight etc.

Electrolytic Capacitor Manufacturers

general purpose,

Temperature Range:-40~+105℃ ;-25~+105℃

Rated Voltage Range:16~400V

Nominal Capacitance Range:0.1~10000µF

Capacitance Tolerance:±20%

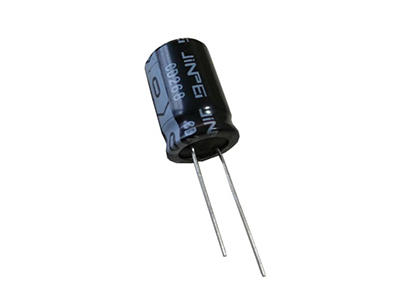

Radial Lead Electrolytic Capacitors pictures

Load Life

After applying rated voltage with specified ripple current for 2000 hours at 105℃ and then

Resumed 16 hours

Capacitance Change: ±20% Initial measured value

Shelf Life

After storage for 1000 hours at +105℃,UR to be applied for 30 minutes and then resumed 16 hours

Capacitance Change: ±20% Initial measured value

Leakage Current:Not more than Initial specified value

Dissipation Factor:Not more than 200% Initial specified value
