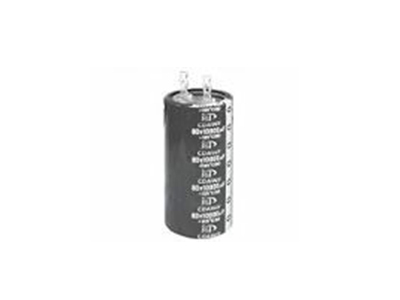

Lug aluminum Electrolytic Capacitors CDAWF

Operating temperature range(℃)：-40～+85℃ Rated voltage range(V) ：35～100V Nominal capacitance range(µF)：470～10000µF Capacitance tolerance：-10%～+30% Leakage current(µA)：I≤0.06CRUR(µA)

Load life(+85℃)

After applying rated voltage for 2000 hours at +85℃ and then resumed 16 hours:

Capacitance change : ±15% Initial measured value

Leakage current : ≤Initial specified value

Dissipation factor :≤130% Initial specified value

Shelf life(+85℃）

After storage for 500 hours at +85℃ and then resumed 16 hours:

Capacitance change : ±20% Initial measured value

Leakage current : ≤200%Initial specified value

Dissipation factor :≤120% Initial specified value

With over 30 years' experience in manufacturing and marketing quality lug aluminum electrolytic capacitors cdawf to all over the world, Jinpei Electronics is recognized as one of the leading manufacturers and suppliers. We now have quantity of quality lug aluminum electrolytic capacitors cdawf for sale, you can rest assured to buy it with our company at a competitive price.
