Multilayer ceramic chip capacitor is composed of a ceramic core which is made with folded ceramic medium film printed with electrode and one layer of metal sealed outside the two ends of the core. It is in some way similar to a monolithic structure.
With its multiple layers, the multilayer ceramic chip capacitor boasts nice resistance and it won’t be necessary to derate,the inductance is very low when in high frequency and it has non-polar equivalent series resistance. It can be used in high ripple circuits or alternating current circuit. It won’t burn or explode in a breakdown, therefore it is very safe to use.
Jinpei Company’sMultilayer ceramic chip capacitor adopted the nano barium titanate ceramic powder which is 99.9% pure with the help of the techniques of North America and Japan. The purity of the ceramic powder applied in other companies in domestic market is 98%.
Advanced medium laminated printing techniques
A certain proportion of rare-earth oxide is added to nano barium titanate ceramic powder to make more reliable ceramic powder so as to produce Multilayer ceramic chip capacitor whose depth of single layer medium is 1um. Other companies home can only make for 1um. As is proved by experiments, the thinner and the more layers there are, the lower loss the MLCC thus produced with high purity ceramic powder has and it can withhold higher surge voltage.
According to the tests of our company:
As for the multi-layer ceramic capacitors with rated voltage below 200V, the actual voltage is 3times higher, 2.5 times higher than industry norm,
Capacitors with rated voltage 200V~1000V the actual voltage is 2 times higher, 1.5 times higher than industry norm,
Capacitors with rated voltage over 1000V the actual voltage is 1.5 times higher, 1.2 times higher than industry norm,
For multi-layer ceramic capacitors with capacity precision level J and tolerance5%,the tolerance of our products is about 2.5%.
For multi-layer ceramic capacitors with capacity precision level K and tolerance10%,the tolerance of our products is about 5%.
For multi-layer ceramic capacitors with capacity precision level M and tolerance 20%,the tolerance of our products is about 10%.

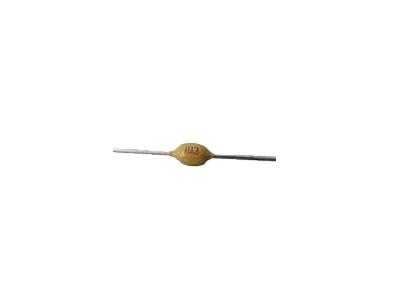

With over 30 years' experience in manufacturing and marketing quality axial multilayer ceramic capacitors cc42 ct42 to all over the world, Jinpei Electronics is recognized as one of the leading manufacturers and suppliers. We now have quantity of quality axial multilayer ceramic capacitors cc42 ct42 for sale, you can rest assured to buy it with our company at a competitive price.
