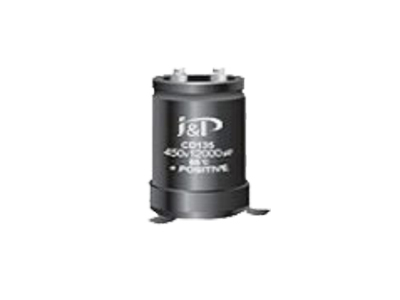

Screw Terminal Aluminium Electrolytic Capacitors CD137

Jinpei as a professional screw electrolytic capacitor manufacturers and over 30years of screw electrolytic capacitor experience, has always been committed to the capacitor field of high and new technology R&D, Jinpei actively contact clients in different areas, involved in instrument, LED, audio, power supply, electronic toys, security, digital camera, microelectronics, oil drilling, solar energy, new energy vehicles, communications, military spaceflight etc.
Availability:

Screw Terminal Aluminium Electrolytic Capacitors

Operating Temperature Range(℃) : -40~+85

Rated Voltage Range(V) : 400~550

Nominal Capacitance Range(µF): 1000~25000

Capacitance Tolerance(20℃,100Hz): ±20%

Screw Terminal Aluminium Electrolytic Capacitors CD137


Leakage Current(μA)

After 5 minutes at 20℃ application of rated voltage,leakage current is not more than 0.01CV or 1.5mA,whichever is smaller.

C:Nominal Capacitance(μF) V:Rated Voltage(V)


Load Life

After applying rated voltage with specified ripple current for 5000 hours at +85℃ and then resumed 16 hours


Capacitance Change:

±20% Initial measured value Leakage Current: Not more than Initial specified value


Dissipation Factor:

Not more than 200% Initial specified value


Shelf life:

After storage for 1000 hours at +85℃,UR to be applied for 30 minutes and then resumed 16 hours Capacitance

Change:±20% Initial measured value

Leakage Current: Not more than Initial specified value

Dissipation Factor: Not more than 200% Initial specified value


Jinpei as a professional screw electrolytic capacitor manufacturers and over 30years of screw electrolytic capacitor experience, has always been committed to the capacitor field of high and new technology R&D, Jinpei actively contact clients in different areas, involved in instrument, LED, audio, power supply, electronic toys, security, digital camera, microelectronics, oil drilling, solar energy, new energy vehicles, communications, military spaceflight etc.


Aluminium Electrolytic Capacitors Manufacturers
